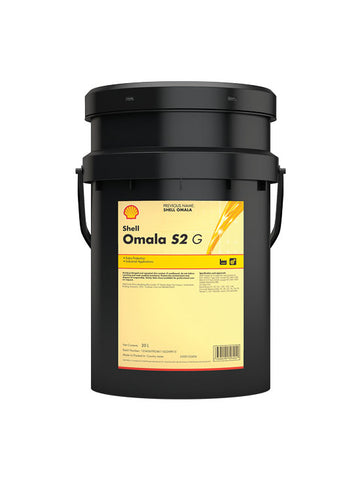

Shell Omala S2 G 100 / P20L
-
DESCRIPTION
-
Shell Omala S2 G oils are high quality extreme-pressure oils designed primarily for the lubrication of heavy duty industrial gears. Their high load carrying capacity and anti-friction characteristics combine to offer superior performance in gears.
ISO VG 68, 100, 150, 220, 320, 460 and 680.
-
-
MAIN APPLICATIONS
-
ENCLOSED INDUSTRIAL GEAR SYSTEMS
Shell Omala S2 G oils are formulated using an effective sulphur- phosphorus additive system to provide an extreme pressure performance which allows trouble free application in most enclosed industrial gearboxes using steel spur and helical gears.
HIGHLY LOADED GEARS
Shell Omala S2 G oils have an effective full extreme pressure (EP) additive system allowing them to be used in highly-loaded gear systems.
OTHER APPLICATIONS
Shell Omala S2 G oils are suitable for lubrication of bearings and other components in circulating and splash-lubricated systems for highly-loaded worm drives the Shell Omala S4 WE oils are recommended.
For automotive hypoid gears, the appropriate Shell Spirax Oil should be used.
-
-
SPECIFICATIONS
-
- ISO 12925-1 Type CKD.
- ISO 12925-1 Type CKC (ISO VG 680, 1000).
- DIN 51517- Part 3 CLP (ISO VG 68 through 680).
- AGMA EP 9005- EO2 (ISO VG 68 through 1000).
- US Steel 224 (ISO VG 68 through 680).
Textron Power Transmissions
- (David Brown) 2E (ISO VG 68),3E.
- (ISO VG 100), 4E (ISO VG 150),5E.
- (ISO VG 220), 6E (ISO VG 320), 7E.
- (ISO VG 460), 8E (ISO VG 680), 9E.
- (ISO VG 1000).
MAG (Cincinnati Machine) P-63
- (ISO VG 68), P-76 (ISO VG 100), P- 77 (ISO VG 150), P-74 (ISO VG 220), P-59 (ISO VG 320).
P-35 (ISO VG 460), P-34 (ISO VG 680), P-78 (ISO VG 1000).
-
-
PACK SIZES
-
- 20L pail.
-
