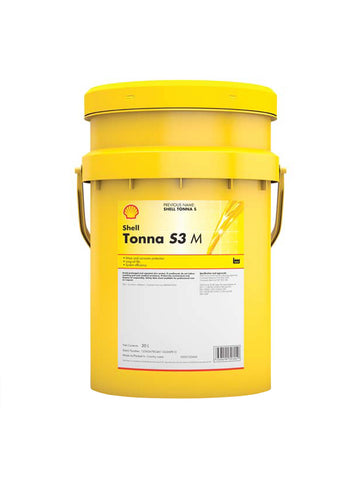

Shell Tonna S3 M 68 / P20L

• DESCRIPTION

  • ISO VG 68 and 220.
    Shell Tonna S3 M Oils are specially designed for the lubrication of machine tool slides and tables. They are based on highly refined mineral oils and contain additives to enhance tackiness, anti-wear and stick-slip characteristics. They are specially recommended in cases where high precision and low speed machines are used as well as where there are combined lubrication systems.

• MAIN APPLICATIONS
  • MACHINE TOOL SLIDE WAYS, TABLES AND FEED MECHANISMS
    Developed for use on a wide range of materials used for machine tool slide way surfaces, including cast iron and synthetic materials.

    MACHINE TOOL HYDRAULIC SYSTEMS
    Particularly recommended for machines which have a combined hydraulic and slide way lubrication system.

    MACHINE TOOL GEARBOXES AND SPINDLES
    Also suitable for gear and headstock lubrication. The lower viscosity grades are intended for horizontal slide lubrication (Tonna S 3 M 68): For vertical slides use Tonna S 3 M 220.
    Advice on applications not covered in this leaflet may be obtained from your Shell representative.


• SPECIFICATIONS
  • Tonna S meets the following specifications:

    • ISO 11158 / ISO 6743-4 HG.
    • ISO 12925-1 / ISO 6743-6 CKC.
    • ISO 19378 / ISO 6743-13 GA and GB.
    • Cincinnati Machine P-50 (ISO VG 220), P-47 (ISO VG 68).
    • CGLP Slideway Oil against DIN 51502.
• PACK SIZES
  • • 20L pail.
    • 209L drum.
